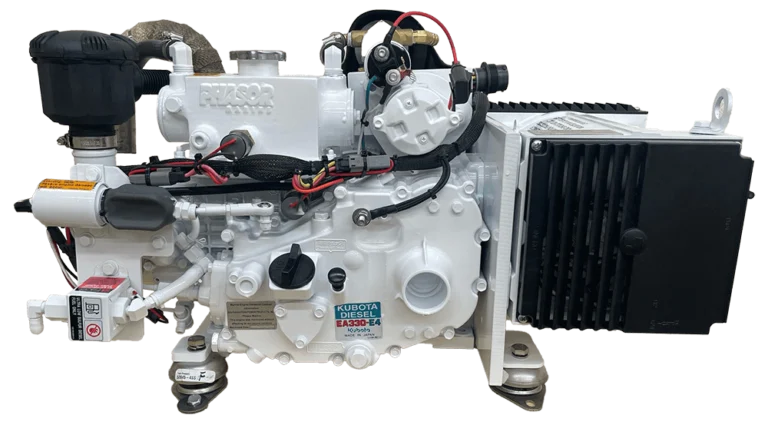

LP1-3.5KW
60 Hertz
- Kubota Diesel Engine
- Heavy duty syncro-cogged timing belt drive system
- Horizontal water cooled 4-cycle diesel engine
- 4-Point isolation mounts S/S
- Slower 2,800 RPM operating speed for reduced noise and vibration
- Safety shutdown system for high coolant temperature or low lube oil pressure
- Single circuit control system with no printed circuit boards or relays
- Freshwater heat exchanger cooling system
- Cast bronze heat exchanger tank with removable end caps
- Zinc anode in heat exchanger
- Belt-driven impellar type raw water pump
- Stainless Steel water cooled exhaust riser
- 12-Volt electric fuel pump
- Remote 12-Volt electric key switch with Preheat, Start, Run and Stop positions
- Forged brass oil drain valve with safety lock
- Air intake cleaner / silencer
- USCG approved fuel lines
- Awl-Craft 2000 urethane finish
- Circuit breaker - main line
- 5-Year Limited Warranty
Standard Features
- Kubota Diesel Engine
- Heavy duty syncro-cogged timing belt drive system
- Horizontal water cooled 4-cycle diesel engine
- 4-Point isolation mounts S/S
- Slower 2,800 RPM operating speed for reduced noise and vibration
- Safety shutdown system for high coolant temperature or low lube oil pressure
- Single circuit control system with no printed circuit boards or relays
- Freshwater heat exchanger cooling system
- Cast bronze heat exchanger tank with removable end caps
- Zinc anode in heat exchanger
- Belt-driven impellar type raw water pump
- Stainless Steel water cooled exhaust riser
- 12-Volt electric fuel pump
- Remote 12-Volt electric key switch with Preheat, Start, Run and Stop positions
- Forged brass oil drain valve with safety lock
- Air intake cleaner / silencer
- USCG approved fuel lines
- Awl-Craft 2000 urethane finish
- Circuit breaker - main line
- 5-Year Limited Warranty
Optional Equipment
- Stainless Steel Drip Pan
- Sound Insulation Blanket
- Powder Coated Aluminum Enclosure
- Spare Parts Kit
Specifications
| Specification | Details |
|---|---|
| Hertz | 60HZ |
| Kubota Model | EA300NB |
| Compression Ratio | 23 to 1 |
| Cylinders | 1 |
| Cu. In. Displacement | 19.0 |
| SAE net Intermittent | 7/2800 (HP/RPM) |
| Bore x Stroke | 2.95 x 2.76 (in.) |
| Dims (LxWxH) | 28 x 16 x 16.25 (in.) |
| Enclosure Dims (LxWxH) | 31.5 x 20 x 18.5 (in.) |
| Weight (lbs.) | 185 |
| Output (volts) | 120/240 |
| Output (amps) | 30/15 |
| Output (watts) | 3,500 |
| Exhaust Dia. | 1.5 in. |
| Raw water Dia. | 5/8 in. |
| Fuel Line Dia. | 5/16 in. |
| Return Line Dia. | 3/16 in. |
