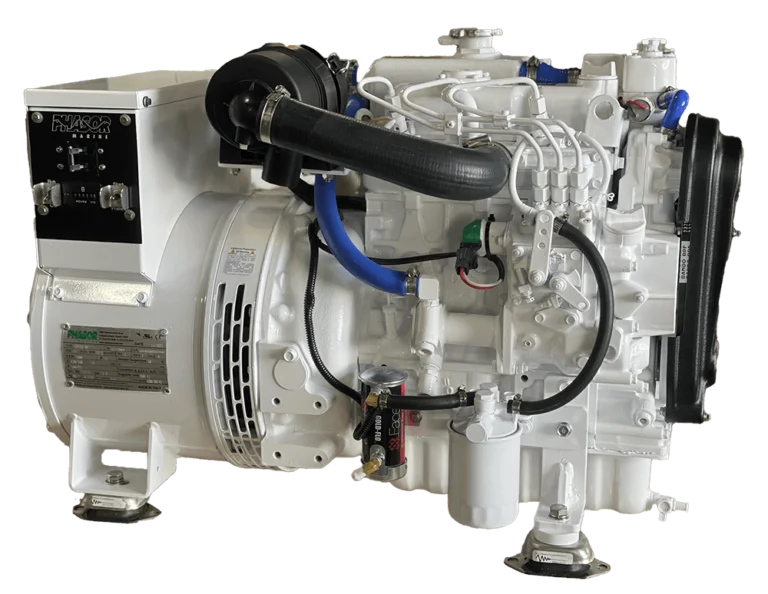

K3-11.0KW
60 Hertz
- Kubota Diesel Engine
- Single bearing direct coupled generator
- Low 1,800 RPM operating speed
- Safety shutdown system for high coolant temperature or low lube oil pressure
- Freshwater double pass heat exchanger
- Water-cooled exhaust manifold with removable intergral Cupro-Nickel heat exchanger core
- Zinc anode in heat exchanger
- Cast Stainless Steel exhaust elbow
- Gear-driven raw water pump
- 4-Point isolation mounts Stainless Steel
- Molded blue silicone water hoses with Stainless Steel AWAB clamps
- Air intake Cleaner / Silencer
- Closed crankcase breather system
- Spin-on lube and fuel filters
- Secondary 5 Micron fuel filter
- Self-bleed fuel system
- USCG approved fuel lines
- Electric fuel transfer pump
- Awl-Craft 2000 urethane finish
- Belt guard
- Circuit breaker
- Start / Stop / Preheat / Hourmeter
- 5-Year Limited Warranty
Standard Features
- Kubota Diesel Engine
- Single bearing direct coupled generator
- Low 1,800 RPM operating speed
- Safety shutdown system for high coolant temperature or low lube oil pressure
- Freshwater double pass heat exchanger
- Water-cooled exhaust manifold with removable intergral Cupro-Nickel heat exchanger core
- Zinc anode in heat exchanger
- Cast Stainless Steel exhaust elbow
- Gear-driven raw water pump
- 4-Point isolation mounts Stainless Steel
- Molded blue silicone water hoses with Stainless Steel AWAB clamps
- Air intake Cleaner / Silencer
- Closed crankcase breather system
- Spin-on lube and fuel filters
- Secondary 5 Micron fuel filter
- Self-bleed fuel system
- USCG approved fuel lines
- Electric fuel transfer pump
- Awl-Craft 2000 urethane finish
- Belt guard
- Circuit breaker
- Start / Stop / Preheat / Hourmeter
- 5-Year Limited Warranty
Optional Equipment
- Remote Start / Stop – 20ft. Harness
- DC Gauge Panel – 20ft. Harness
- Stainless Steel Drip Pan
- Three Phase Generator Output
- 24-Volt Starting System
- Sound Insulation Blanket
- Powder Coated Aluminum Enclosure
- Spare Parts Kit
Specifications
| Specification | Details |
|---|---|
| Hertz | 60HZ |
| Kubota Model | D1305-E3BG |
| Cylinders | 3 |
| Cu. In. Displacement | 76.96 |
| Bore x Stroke | 3.07 x 3.46 (in.) |
| Dims (LxWxH) | 33 x 18 x 23.25 (in.) |
| Enclosure Dims (LxWxH) | 38 x 23 x 25.5 (in.) |
| Weight (lbs.) | 483 |
| Output (volts) | 120/240 |
| Output (amps) | 92.5/45.8 |
| Output (watts) | 11,000 |
| Exhaust Dia. | 2 in. |
| Raw water Dia. | 3/4 in. |
| Fuel Line Dia. | 5/16 in. |
| Return Line Dia. | 3/16 in. |
