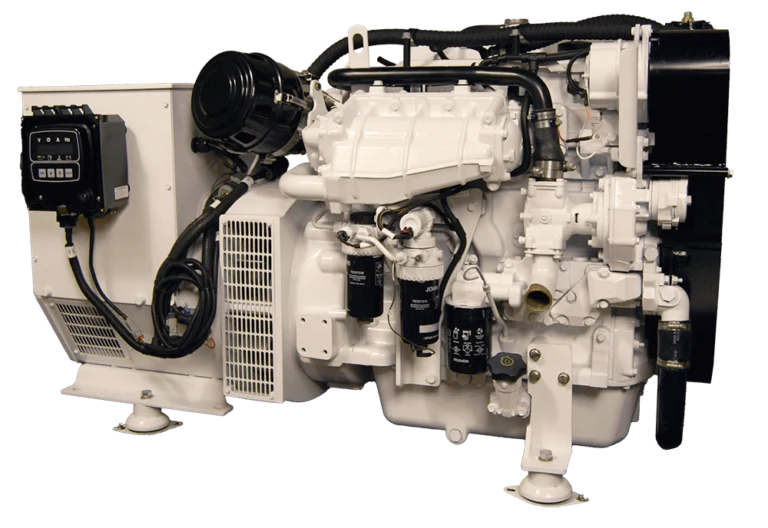

JD4-99.0KW
60 Hertz
- Single bearing brushless generator
- Low 1,800 RPM operating speed
- Safety shutdown system
- 4-Point isolation mounts
- Automatic low oil pressure and high water temperature shutdown
- Freshwater heat exchange cooling
- Zinc anode in heat exchanger
- Water-cooled manifold and Stainless Steel exhaust elbow
- Direct drive seawater pump
- Air intake Cleaner / Silencer
- 12 Volt starting
- 12 Volt battery charging alternator
- Awl-Craft 2000 urethane finish
- 5-Year Limited Warranty
Standard Features
- Single bearing brushless generator
- Low 1,800 RPM operating speed
- Safety shutdown system
- 4-Point isolation mounts
- Automatic low oil pressure and high water temperature shutdown
- Freshwater heat exchange cooling
- Zinc anode in heat exchanger
- Water-cooled manifold and Stainless Steel exhaust elbow
- Direct drive seawater pump
- Air intake Cleaner / Silencer
- 12 Volt starting
- 12 Volt battery charging alternator
- Awl-Craft 2000 urethane finish
- 5-Year Limited Warranty
Optional Equipment
- Remote Controls Including Electronic Control Panel With Display For All Engine And Generator Functions
- Single Phase Output - 120/240
- 24-Volt DC Start
- Dedicated Motor Starting Generator Windings
- Stainless Steel Drip Pan
- Powder Coated Aluminum Enclosure
- Spare Parts Kit
Specifications
| Specification | Details |
|---|---|
| Hertz | 60HZ |
| Model | JD-99.0KW |
| Engine | John Deere 4045AFM85 |
| Cylinders | 4 |
| Cu. In. Displacement | 273 |
| Bore x Stroke | 4.21 x 5.00 (in.) |
| Dims (LxWxH) | 65 x 32 x 38 (in.) |
| Enclosure Dims (LxWxH) | 68.5 x 38 x 41 (in.) |
| Weight (lbs.) | 2584 |
| Output (volts) | 208 Three phase |
| Output (amps) | 276 |
| Output (watts) | 99,000 |
| Fuel Consum. @ 50% load | 4.3 GPH |
| Fuel Consum. @ 100% load | 7.6 GPH |
| Exhaust Dia. | 4.0 in. |
